As technology continues to improve manufacturing solutions and increase product expectations, issues like environmental impact and increased visual appeal to challenge companies to find new ways to keep consumers engaged. As an expert of Assembly Solutions Provider for the world’s top brands and products, SKYLOG’s advanced assembly solutions aid customers overcome the challenges of a rapidly changing manufacturing landscape.

SKYLOG ramps some of the most innovative connected smart advanced assembly tools and systems in Malaysia.
As a proactive solutions partner with extensive experience of tightening assembly for semiconductors, home appliances, solar panel, aerospace components, SKYLOG provides key services that include:

  • Smart Assembly Systems with one stop solution
  • Design engineering and rapid prototyping – fast optimization before mass production
  • Process innovation – advanced AI systems, assembly and test processes
  • Automation – high-efficiency, complex and high-tolerance process robotics
  • Design verification and test development – production test development, failure analysis and reliability testing

With more than 15 years of experience, SKYLOG is uniquely positioned to help our customers succeed to create purposeful technology and products in the market demanding.
Our capabilities and expertise include:

  • Error proofing system to manage all your process sequence
  • All process data will send to server in real time
  • Human Machine Interface (HMI) Guidance for operator, simplified system to follow the process sequence
  • The system managed all connecting device (tightening, barcode, printer, I/O module, picking module)
  • User management make sure only allocated operator can access the system
  • Fail Detection – Settings of restrict the tool triggers to prevent wear and tear.
  • Positioning Detection – Preventing operator by passing the sequence and ensure the assembly process is accordingly.

We recognize the unrelenting acceleration in the pace of change, and that uncertainty and risk abound in both mature and emerging markets. To ensure customers’ sustained growth, SKYLOG simplifies these complexities by providing end-to-end assembly systems with comprehensive value-added services.

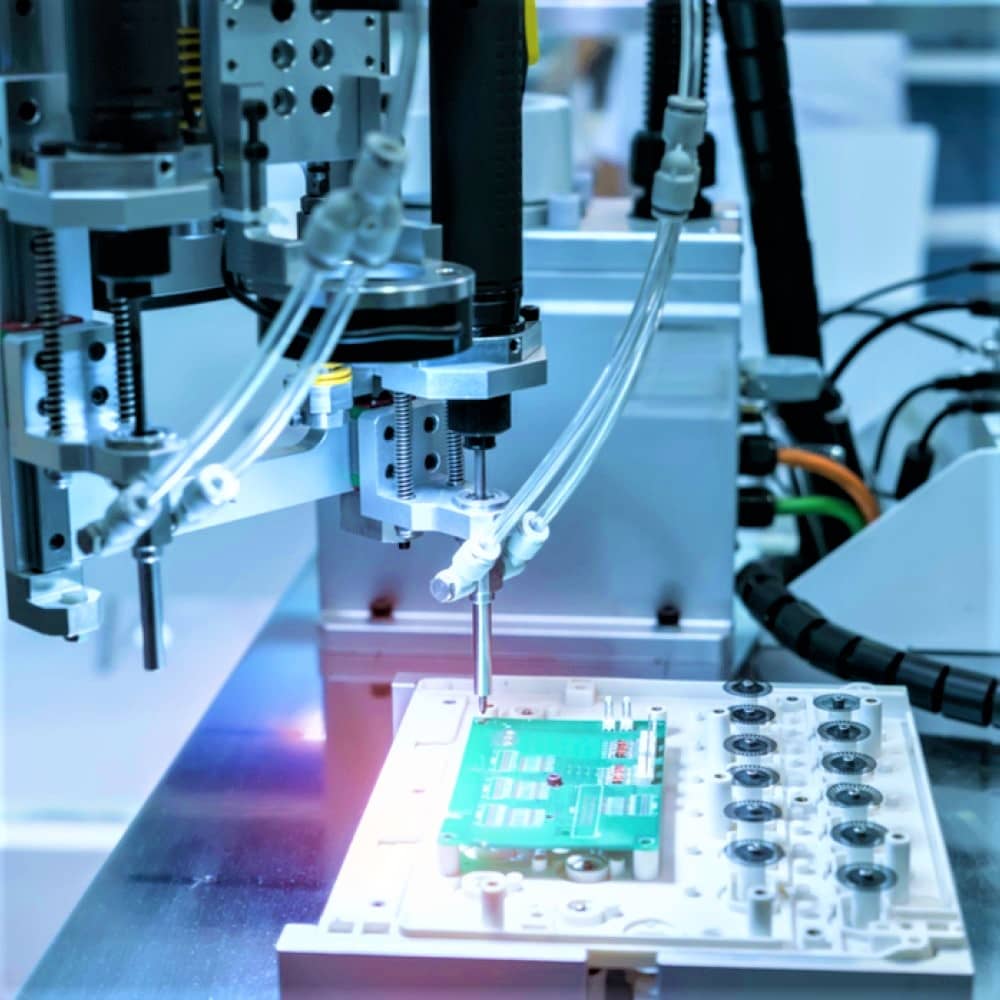

SMART ASSEMBLY TOOLS & SYSTEMS

Flexible : Lever Start and Push Start in the same tool
Ergonomics : Light compact soft grip
Traceability and Accuracy : Transducer Technology
Joint Visibility : Fronts LED Light
Reliable : Long life gears , Brushless Motor
Visible & Programmable Reporting : LED Systems
Configurable Reverse Button : Alternate, 1 round, 2 round

With Smart Torque Controller and Programmable Assembly Process
Assembly Automation offers innovative, robust, and lightweight tooling for robots. Our innovative screw-driving techniques provide consistent quality, decreased production costs, and increased assembly output.

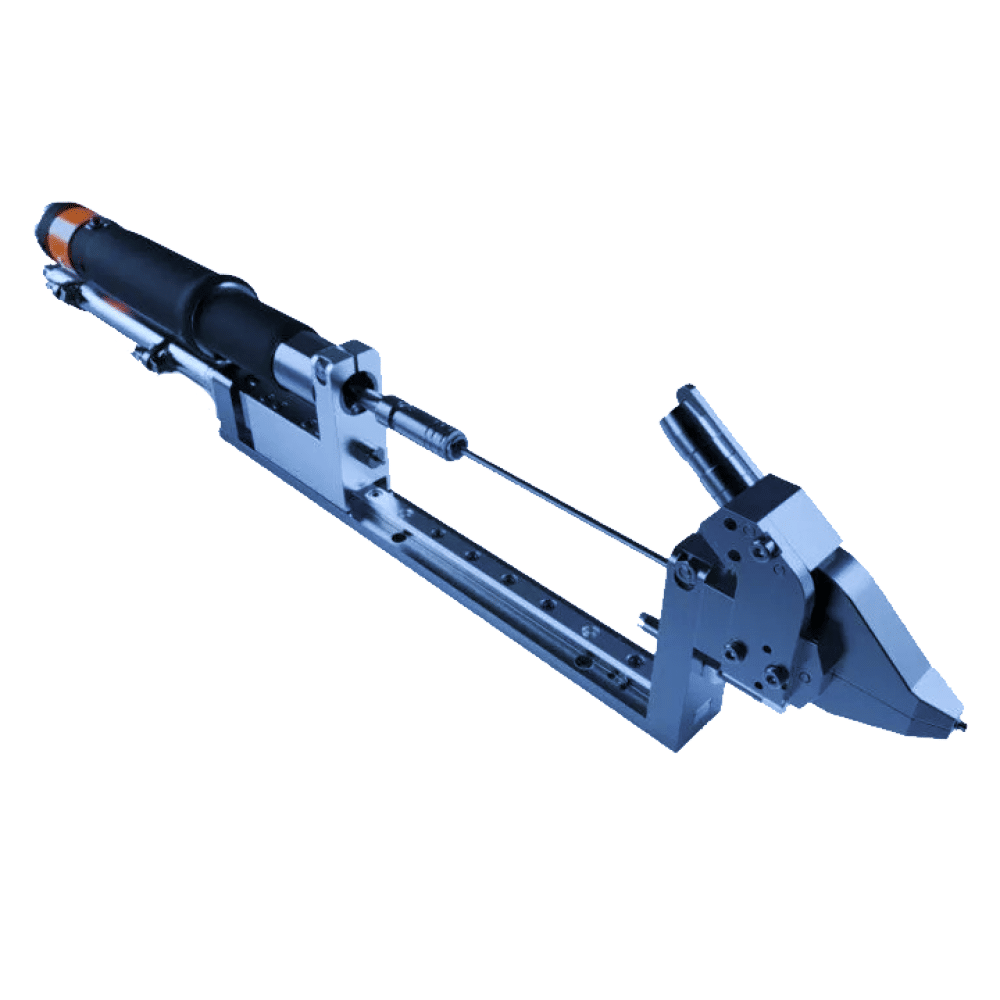

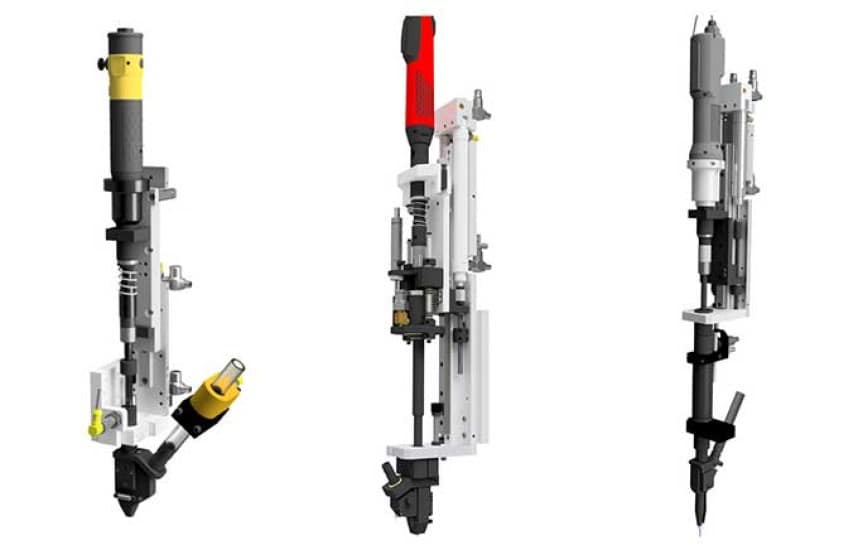

SINGLE SPINDLE

Innovative tooling, high-quality torque drivers and readily available components produce systems that are durable, customer-friendly and good value. We use components from our own machines or outsourced from local aerospace quality suppliers. Customers have the choice of precision electric or pneumatic screwdrivers from Atlas Copco, Bosch, Stanley or Cleco.

Tooling is all air-hardened tool steel from inserts in the high wear areas in the bowl through the escapement into the receivers. Tooling variations to handle single spindles, inverted driving and vacuum extensions are just a few of the options available.

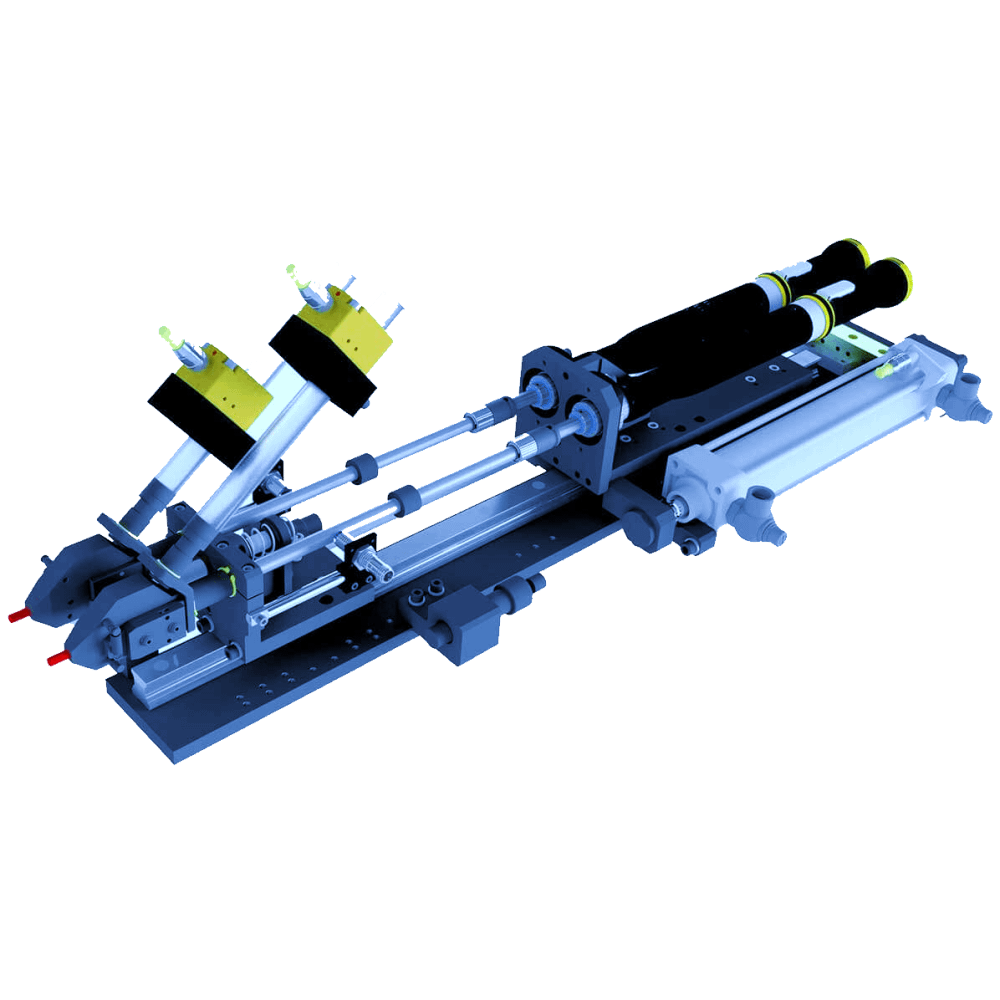

MULTIPLE SPINDLES

  • SMP-998 packages multiple screwdrivers, into a pre-assembled station.
  • A rigid ground steel base and square support column provide a highly stable platform.
  • Head approach and bit stroke are independently adjustable.
  • Screwdriver motors and bit holders are easily serviced without realignment.
  • Compact head tooling is positioned on the customer’s hole layout.
  • Easy to replace sub-plates allow hole layouts to be changed for retooling.
  • A large Junction Box is included to terminate sensors.
  • A central manifold provides multiple air outlets for up to 8 tools.
  • Pneumatic or Electric tools may be used with torque up to 30 Nm.
  • Cross roller or linear ball slides provide long life and low maintenance.
  • The open frame construction provides superior access compared with individual enclosed designs.
  • Externally adjustable clutches allow torque adjustment without removing the tool.
  • Compact head tooling is positioned on the customer’s hole layout.
  • The SMP-998 installs over a pallet or dial machine with minimum setup time. Everything is pre-positioned, pre-plumbed and pre-wired

MULTIPLE SPINDLES

  • SMP-998 packages multiple screwdrivers, into a pre-assembled station.
  • A rigid ground steel base and square support column provide a highly stable platform.
  • Head approach and bit stroke are independently adjustable.
  • Screwdriver motors and bit holders are easily serviced without realignment.
  • Compact head tooling is positioned on the customer’s hole layout.
  • Easy to replace sub-plates allow hole layouts to be changed for retooling.
  • A large Junction Box is included to terminate sensors.
  • A central manifold provides multiple air outlets for up to 8 tools.
  • Pneumatic or Electric tools may be used with torque up to 30 Nm.
  • Cross roller or linear ball slides provide long life and low maintenance.
  • The open frame construction provides superior access compared with individual enclosed designs.
  • Externally adjustable clutches allow torque adjustment without removing the tool.
  • Compact head tooling is positioned on the customer’s hole layout.
  • The SMP-998 installs over a pallet or dial machine with minimum setup time. Everything is pre-positioned, pre-plumbed and pre-wired

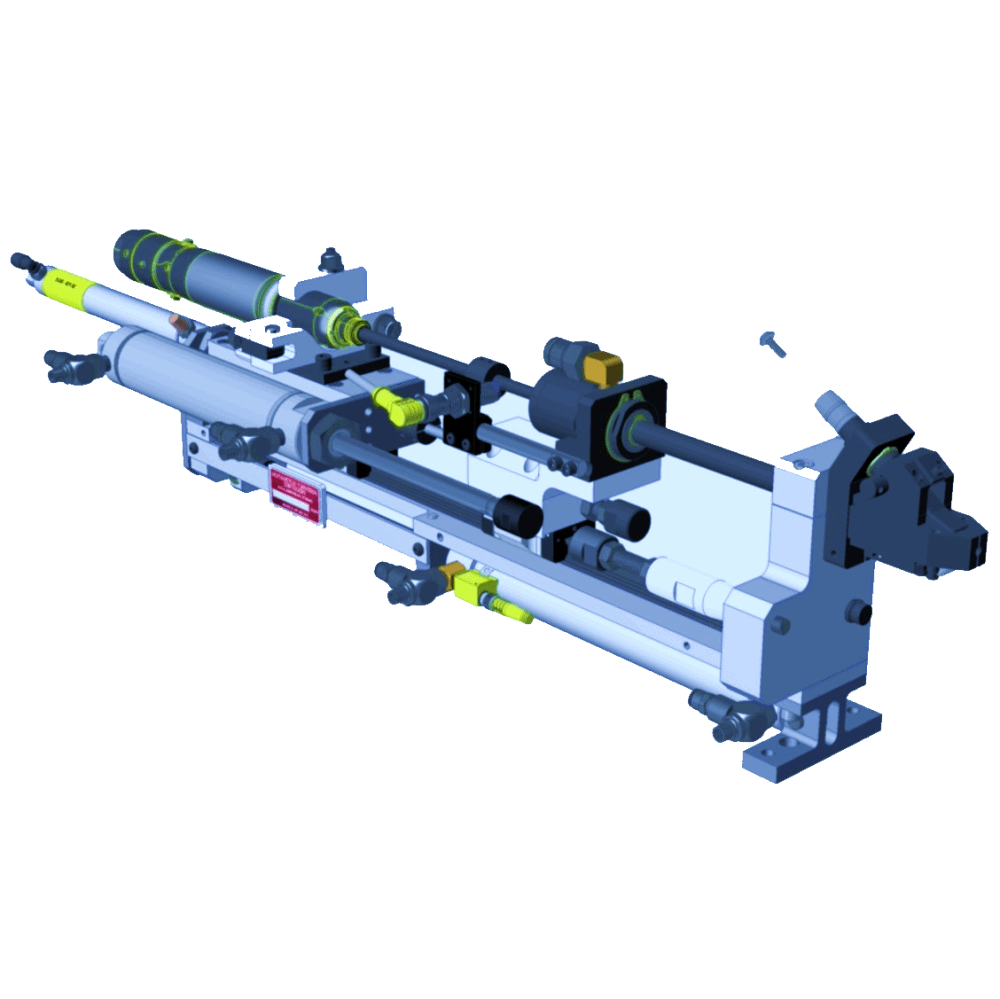

VACUUM FIXTURED SCREWDRIVER SPINDLE

The SKYLOG fixtured systems feature a highly reliable and rugged design which is the standard within the industry for fixed spindles. These units are for use on a single stage application or when a robot or other slide will bring the driver spindle closer to the work pieces for installation of the fastener. The special Vacuum nosepiece and Vacuum bit can be instructed to self advance its bit stroke device and install fastener while detecting that the depth was achieved or not. When the start signal is given usually through a PLC control system to a solenoid valve the vacuum bit advances forward out of the jaws to expose the bit and fastener .

This proven design can get into access location normally unachievable by conventional means, and allows fasteners to be installed down into deep recesses.

Customization is performed on most systems to ensure the utmost functionality for each fastener size and style. This device can accommodate almost any style of Pneumatic or Electric motor drives and can be used singly or in multiples for more complex fastening . They can be used at any angle and even upside down for those difficult inverted applications., and these are often fitted with sensors to provide input to a PLC for control or reporting functions.

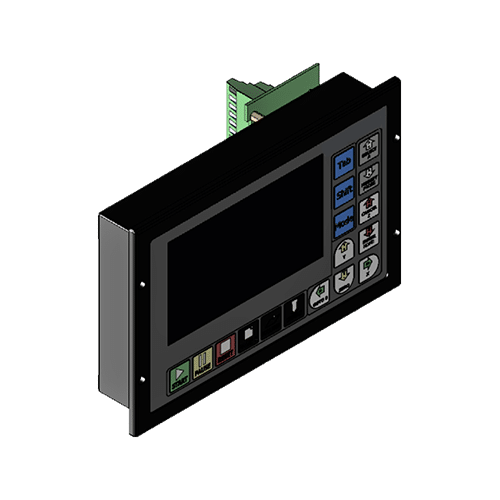

SMART TORQUE CONTROLLER

The control unit monitors and controls the screwdriving system.
The choice of the control unit may depend on :

  • the type of screwdriving system (handheld or automatic screwdriving unit)
  • the number of screwdriving systems to be controlled
  • the parameters to be monitored

The complexity of tasks such as singling and feeding of fasteners or the sequence control of multi-spindle screwdriving systems is essential for the selection of the proper control unit.

Apart from our standard units any control unit requested by our customer (operational guidelines, technical specification) is available and will be built and programmed.

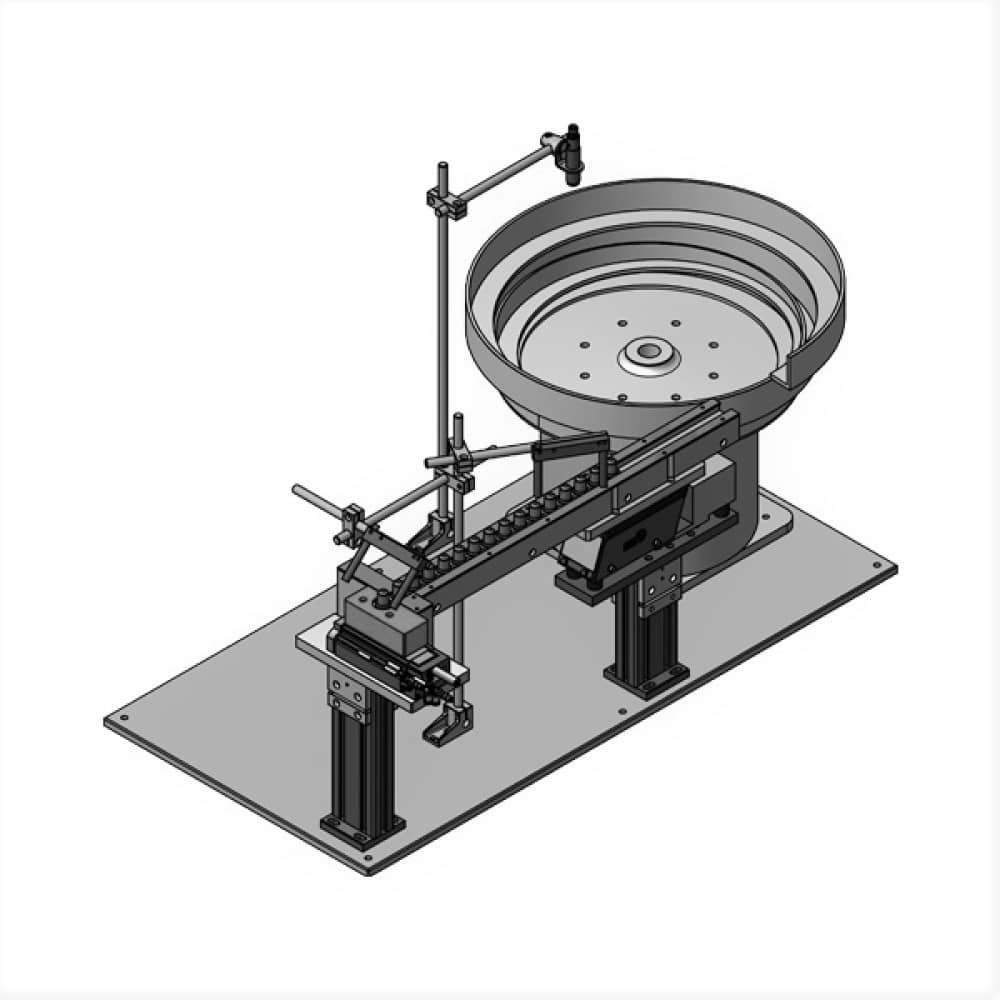

SCREWFEEDER SYSTEMS

THE ADVANTAGES AT A GLANCE:

  • Robust all-rounder, suitable for almost every fastener
  • For all sizes and geometries
  • High throughputs
  • Rapid clearance of non-dimensionally compliant or deformed screws and foreign bodies
  • Can be operated with 230 V/ 50 Hz or 120 V/ 60 Hz without additional settings or modifications
  • Coating of the feeder bowl for high wear resistance and quiet running
  • Cover of the sorting chicane can be removed with ease, without the use of tools, e.g. for maintenance purposes or with the clearance of deformed fasteners
  • Feed control across the entire feed process with sensor system
  • Production in accordance with drawing enables exchange of wearing parts

SCREWFEEDER SYSTEMS

THE ADVANTAGES AT A GLANCE:

  • Robust all-rounder, suitable for almost every fastener
  • For all sizes and geometries
  • High throughputs
  • Rapid clearance of non-dimensionally compliant or deformed screws and foreign bodies
  • Can be operated with 230 V/ 50 Hz or 120 V/ 60 Hz without additional settings or modifications
  • Coating of the feeder bowl for high wear resistance and quiet running
  • Cover of the sorting chicane can be removed with ease, without the use of tools, e.g. for maintenance purposes or with the clearance of deformed fasteners
  • Feed control across the entire feed process with sensor system
  • Production in accordance with drawing enables exchange of wearing parts

This winning combination will enable our customers worldwide to benefit from unparalleled accuracy and traceability in precision assembly. It will also deliver significant process control improvements: boosting productivity, quality, and safety.

SkyVerse is the most advanced technology of its kind currently available.
Reliable solution for high precision industrial tasks, it can position any asset within 1mm in real-time and with zero latency.

This live motion capture solution is ideal for highly demanding industries like automotive and aerospace, where optimal accuracy is critical, without room for error.

Examples include tightening, and pick & place operations for semiconductors, precision engineering and home appliances.
